Telestack offer a range of stationary stacking conveyors, radial stacking conveyors, and radial telescopic and mobile stacking conveying solutions for both primary applications typically working after a primary jaw or stacking as part of an integrated processing plant. Each particular solution is dependent on the tonnage, installation requirements, material characteristics and application.

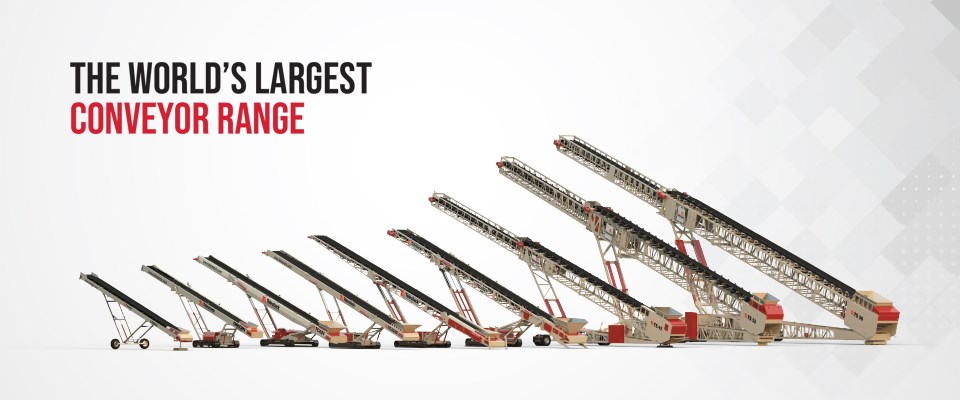

Offering lengths from 15m (50ft) to 31m (101ft), tonnages of 100tph up to 1500tph, and lump sizes up to 300mm (12”), Telestack offer the widest range of sand, gravel and aggregate stockpiling solutions. Telestack offer a selection of fixed length and telescopic conveyors in tracked, wheeled and static configuration.

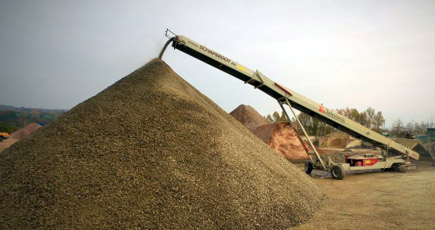

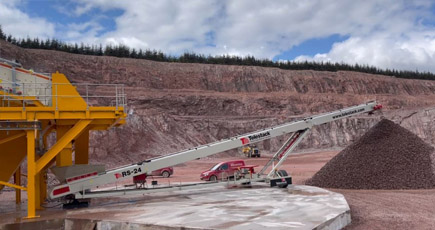

Radial Stacker Range
The radial stacker conveyor is designed to stockpile material from secondary equipment with an optional built in radial function designed to maximise stockpile volumes. The flexibility and efficiency of this equipment means it can be used in many applications both long and short term. This versatility also means improved resale value when the project is finished as it is open to many different markets.

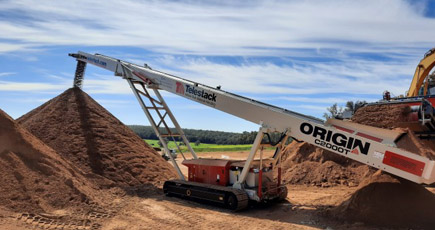

Origin TC Range
The Origin is an entry level range of products that embodies the original Telestack ethos of reliable design and good workmanship - but without the extras!
Although more basic in design, the Origin range maintains the ability to achieve impressive stockpiling ability and is ideal working after a screen in crushed aggregate, sand, or top soil application reaching tonnages in excess of 300tph.

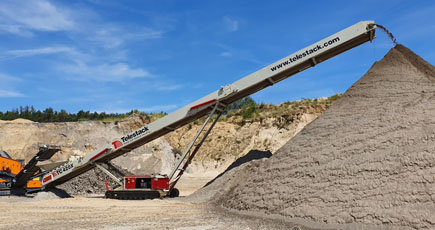

X TC Range
The X-Range would be considered the Telestack value range and is renowned for its functionality and performance. With lengths from 15m to 24m (50ft - 80ft), the Telestack X Range is typically found working after mobile screens in crushed aggregate, sand, or top soil applications reaching tonnages in excess of 400tph.
Standard TC Range
The Telestack standard tracked stockpiling range is renowned in the industry for its strength and reliability and is designed with a deeper mid-section for extra strength and rigidity. Better suited for higher tonnages, larger surges and larger lump size, the standard boasts a ribbed boom design in the tail, mid and head sections for added strength. The Telestack standard range is also available in a radial formation offering a larger stockpiling capacity to those applications that need it.
Revolution Range

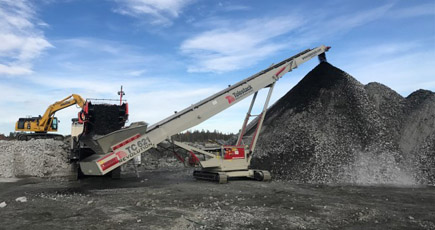

The TC Revolution is a track mounted stockpiling conveyor with a centre mounted slew bearing that enables 360° rotation. With the ability to create parallel stockpiles and a radial stockpile from one fixed feed in point, the TC Revolution shows unrivalled mobility and greatly enhances stockpile capacities. Available in 20m, 21m and 24m versions, the Revolution series offers maximum flexibility to the X and Standard ranges.

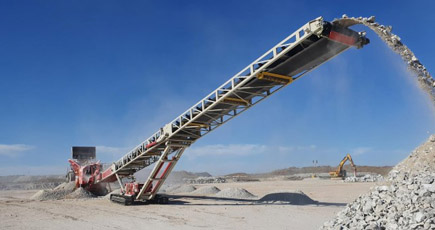

Heavy Duty Lattice TC Range

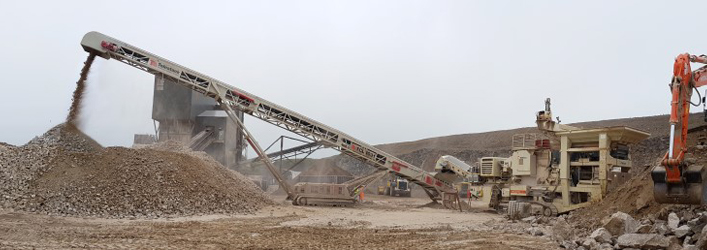

The track mounted lattice frame conveyor range is renowned for its extra strength and is used in lengths 24m (80ft) and above. Renowned for its strength, the lattice frame is typically found working after a primary jaw offering stockpiles with tonnages up to 1500tph.

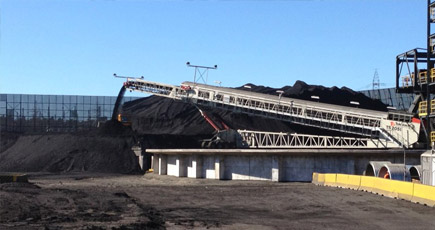

Much of the recent demand has been in the high spec aggregate stacker offering with throughputs ranging up to 2,000tph. Custom designed by experienced engineers to suit the application and the project lifecycle, the Telestack stackers are designed with high-spec componentry where safety and compliance are key. Telestack’s ability to offer a customised solution that integrates fully into an aggregate processing plant for example, whilst sustaining the high tonnages required, has seen Telestack gain a well-earned reputation in this field.

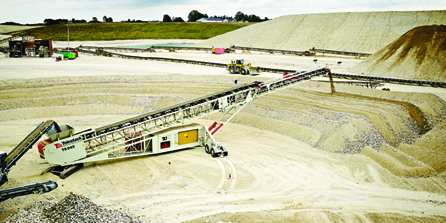

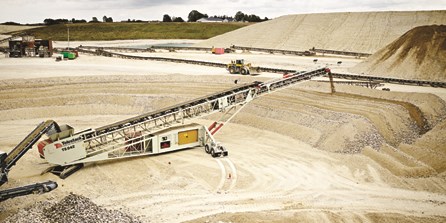

Radial Telescopic Stacker
Available in lengths from 25-58m, the Radial Telescopic Stacker offers a unique material handling solution for the Quarrying, Mining, and Rail Transportation industries and can also be utilised in Ports & Inland Terminals for Ship/Barge Loading and Unloading.
The radial, telescopic and luffing features allows the operator full control when stockpiling a range of materials whilst eliminating segregation, degradation, contamination and compaction of material.
The innovative design allows for up to +30% larger stockpile capacity when compared to conventional fixed length conveyor systems. The unit can be used to stockpile (automatically) from secondary crushers and screens, receive crushed material and stockpiling safely over a quarry face/bench, work as part of a mobile system on short to medium term projects or used as a telescopic mobile link conveyor.
Customisation
Telestack offer a level of customisation that is relatively unmatched in the business. Units working after a primary jaw for example, are designed to withstand large lump sized product and will include suitable wear liners, impact beds, fall breaks and heavy duty belting etc. These units perform under the toughest conditions (dust and dirt, heat, moisture and extreme temperatures) and are built robustly to withstand these extremes. The units are also designed with maintenance in mind with ease of access incorporated into the design.
Flexibility with Conveyors
The mobility with conveyors means that planning requirements are ordinarily not required and your operation can start in a relatively short time owing to the reduced Capex requirements and shorter lead times compared to fixed infrastructures. The flexibility offered by mobile conveyors also gives the operator full control to relocate the Telestack mobile equipment around the site or from site to site quickly and easily putting full control in their hands.
Offering mobile Ship loaders, Ship Unloaders, Hopper Feeders, Truck Unloaders, Bulk Reception Feeders, Stockpiling Conveyors, Link Conveyors and Telescopic Stackers, Telestack Conveyors can handle all free flowing bulk materials including ores, coal, aggregates, fertilizers, grains, woodchips, pellets and many more bulk materials that need moved.
