TC Revolution

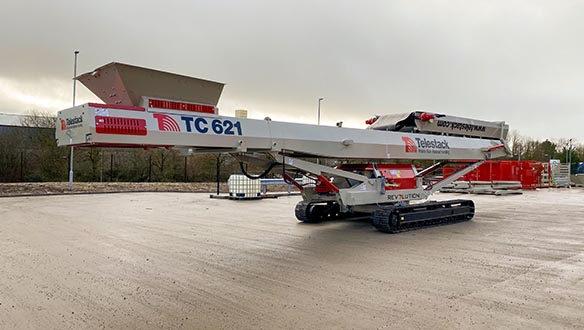

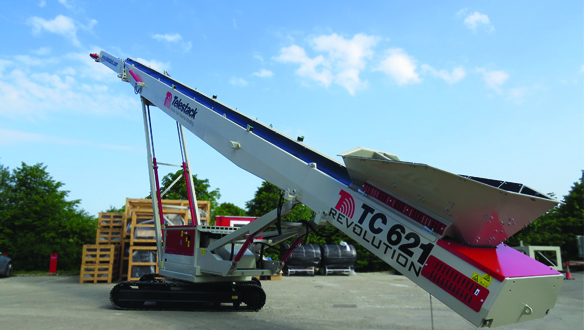

TC 621 Revolution Tracked Conveyor

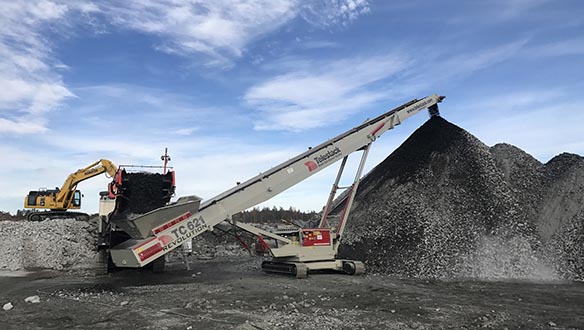

The TC 621 Revolution is a track mounted fully mobile stockpiling conveyor with a centre mounted slew bearing that enables 360° rotation. With the ability to create parallel stockpiles and a radial stockpile from one fixed feed in point, the TC Revolution shows unrivalled mobility and greatly enhances stockpile capacities.


KEY FEATURES

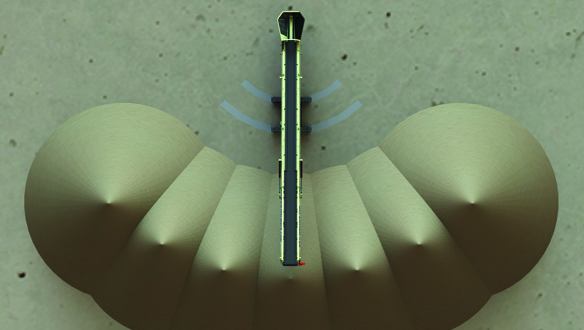

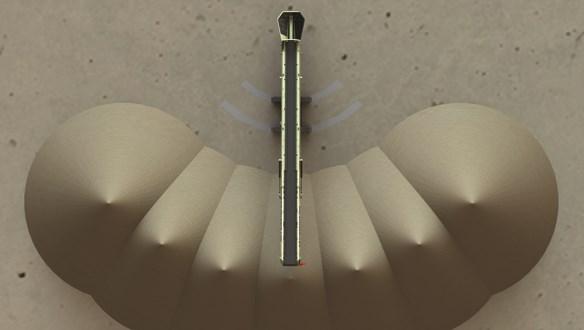

  • Radial stockpile from one fixed feed in point

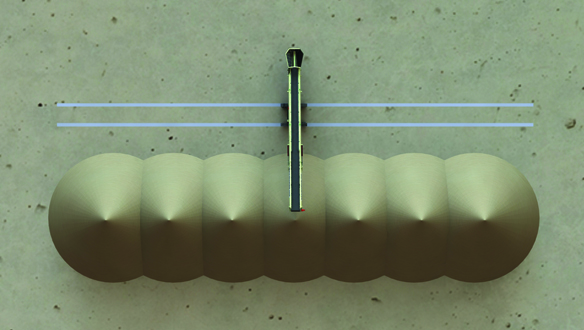

  • Create Parallel Stockpiles
  • Reduce fuel, labour and maintenance costs by up to 80%
  • Fuel consumption from 5 litres per hour
  • Telestack is the market leader in this range of equipment

Description

The Telestack range of Tracked Stockpiling Conveyors is the ideal solution for stockpiling after mobile crushing / screening plants. The mobility and flexibility of the Stockpiling Conveyors reduces / eliminates the use of a wheel loader on site. The range of stackers ensures all applications are catered for from heavy duty primary jaw crushing applications to light duty screening applications. With over 1000 of these units in operation globally, Telestack is the market leader in these range of units.

OPTIONS

  • All Electric (Electric motor driven belt)
  • Radio remote control for all functions
  • Feed-boot extensions for feeding from range of equipment
  • Dust Suppression measures – Cover, water spray bars, chutes
  • Rubber skirting full length of conveyor to reduce spillage
  • Hardened Steel Liners
  • Overband Magnets
  • Water Cooled Engine
  • Belt Upgrades (Heavy Duty)/ Chevron
  • Hydraulic Tail Fold

Features & Benefits

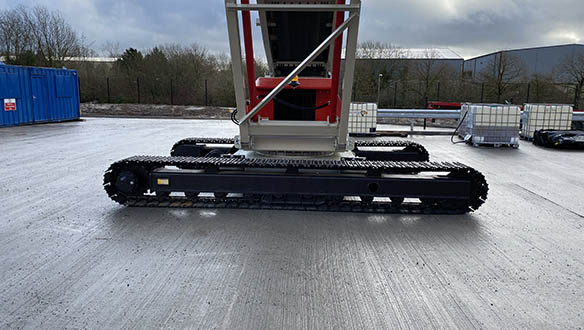

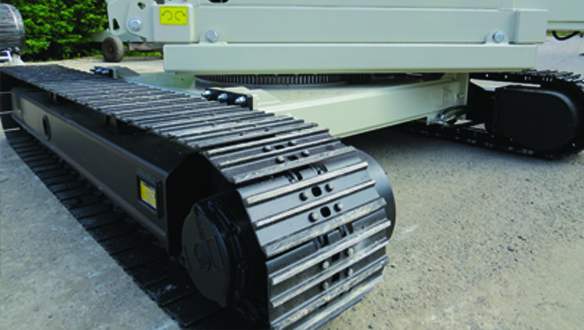

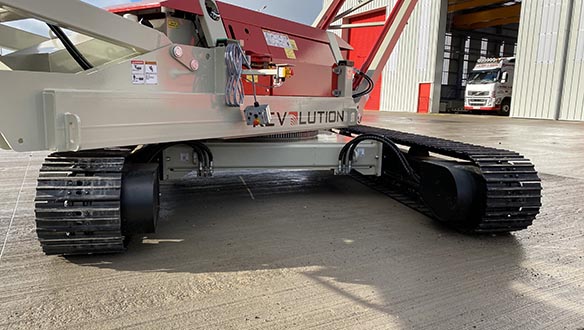

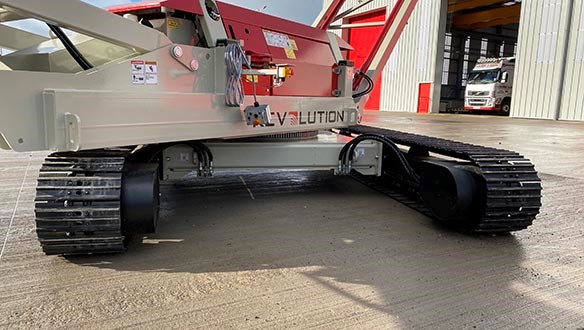

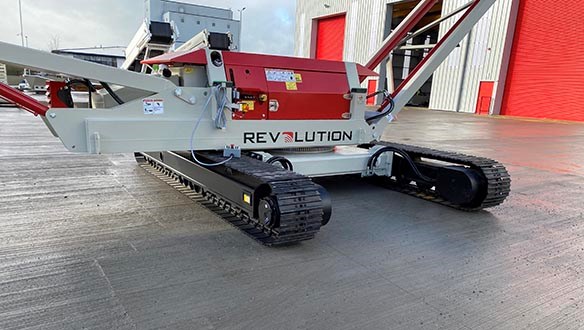

  • 360 degree rotation tracks

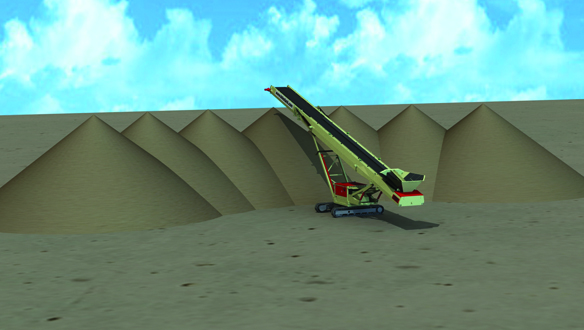

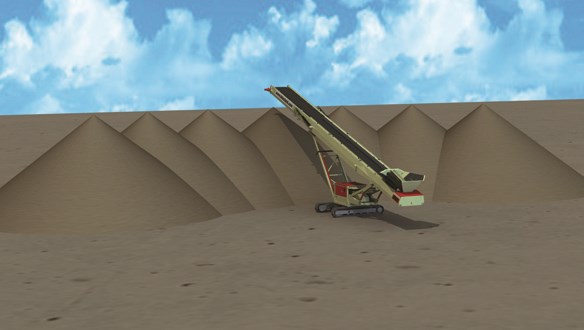

  • Radial Stockpile from one fixed feed in point
  • Eliminate double handling of material with wheel loaders.
  • Fuel consumption from 5 litres per hour.
  • Stockpiling rates up to 600 tph.
  • Stockpiling 0 - 250mm (10 inch down) material.
  • Environmental Benefits - reduce noise, dust and emissions.
  • Safety Benefits - Less site traffic movements.
  • Stockpile heights up to 11 metres (36ft)
  • Single conical stockpile capacity up to 1,535 tonnes (1,690 ton)
  • 180° arc stockpile capacity up to 12,211 tonnes (13,460 ton)
  • Easily shipped on low loader or packed in 1 x 40ft container for shipping throughout the world

OPTIONS

  • All Electric (Electric motor driven belt)
  • Radio remote control for all functions
  • Feed-boot extensions for feeding from range of equipment
  • Dust Suppression measures – Cover, water spray bars, chutes
  • Rubber skirting full length of conveyor to reduce spillage
  • Hardened Steel Liners
  • Overband Magnets
  • Water Cooled Engine
  • Belt Upgrades (Heavy Duty)/ Chevron
  • Hydraulic Tail Fold

Applications

  • Stockpiling direct from primary crushers at material source.
  • Stockpiling from secondary crushers and screens.
  • Stockpiling crushed stone, sand and gravel, mineral ores and many more.
  • Stockpiling construction and demolition waste, top soil, coal, grain etc.
  • Receiving crushed material and stockpiling safely over a quarry face/bench.
  • Working as part of a mobile system on short to medium term projects.
  • Ship, truck and rail wagon loading.
  • Mobile Link conveyor

OPTIONS

  • All Electric (Electric motor driven belt)
  • Radio remote control for all functions
  • Feed-boot extensions for feeding from range of equipment
  • Dust Suppression measures – Cover, water spray bars, chutes
  • Rubber skirting full length of conveyor to reduce spillage
  • Hardened Steel Liners
  • Overband Magnets
  • Water Cooled Engine
  • Belt Upgrades (Heavy Duty)/ Chevron
  • Hydraulic Tail Fold
