LF RANGE (Low feed)



Introducing the LF (Low Feed) Range

The Low Feeder range allows the operator to directly discharge from wheel loaders/ grab cranes and excavators at a significantly lower feed in height compared to standard hopper feeders. The unique design of the hopper allows for rear feeding which can be beneficial when operating in constrained areas.

KEY FEATURES

  • Hydraulic fold down sides allows for three sided feeding of the hopper

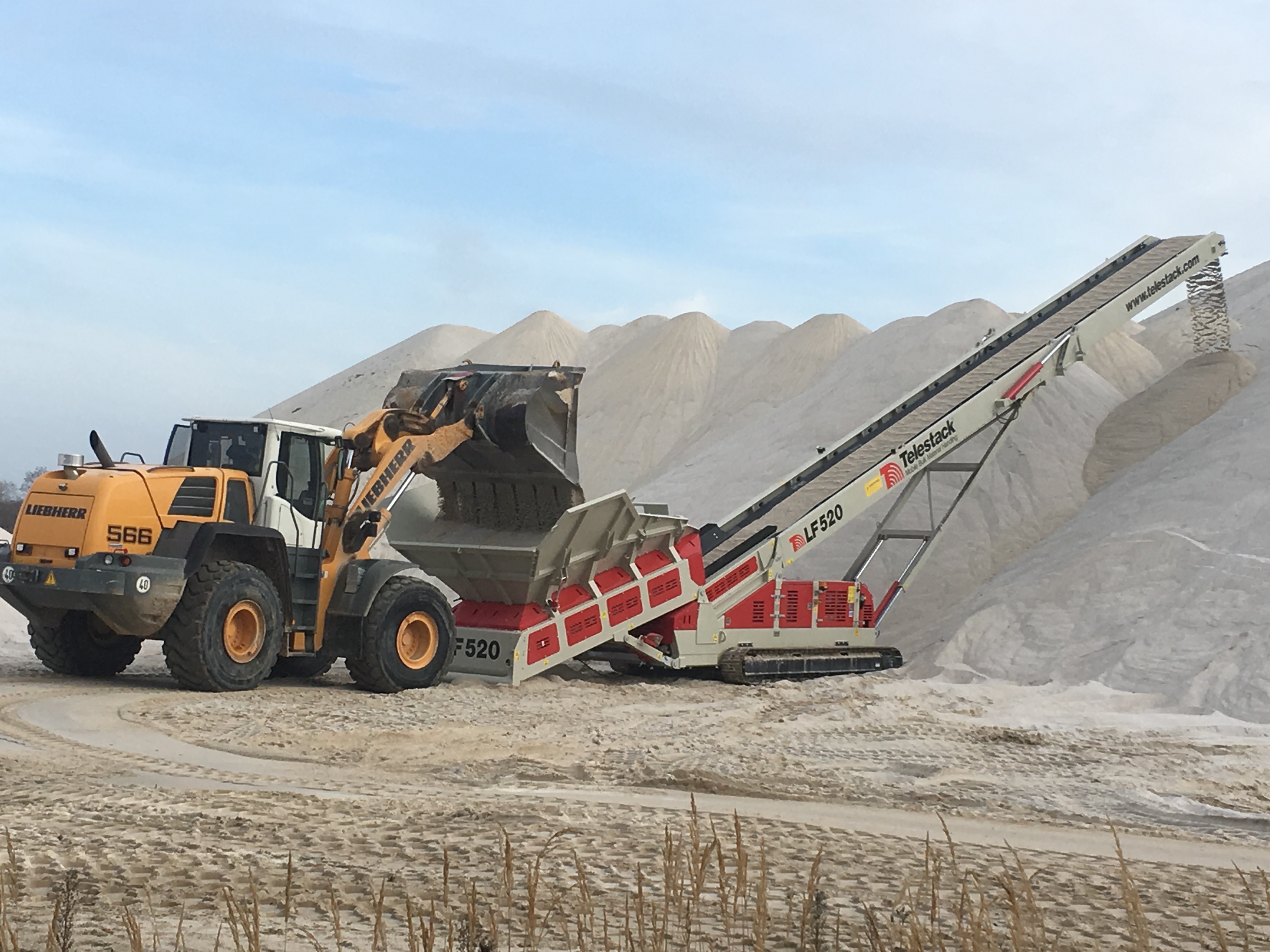

  • Eliminate/ reduce double handling of material from wheel loaders
  • Complete range of mobility and sizes available for a range of applications
  • Allows for a controlled feed to Telestack equipment directly from wheel loaders and grabs
  • Tracked, wheeled and skid mounted units available
  • Fully mobile independent units

Description

Telestack design and manufacture a range of low feeders to suit various applications. With a range of standard machine types with boom lengths of up to 24 metres or fully customised units to suit the client’s specific requirements.

OPTIONS

  • 360 Degree Slew Option
  • Hydraulic Jacking Legs
  • Belt Upgrades
  • Fall break systems
  • Fold down wing plates
  • Liner Upgrades
  • Apron belt feeder or Apron pan feeder upgrades for high density material or large lump size
  • Dual power
  • Range of discharge conveyors (Cambered boom, fixed length)
  • Dust Suppression Measures – Galvanised / Canvas Dust covers, 360 degree trimmer chutes, Rubber ‘sock’ chutes, water suppression and many more.
  • Sealing of all transfer points including side plates and under-trays
  • 250 micron Specification paint finish

Features & Benefits

  • Loading rates up to 2,500TPH
  • Range of designs and hopper capacities depending on feeding equipment and production rates on site.
  • Complete on-site mobility including tracks (rubber tracks), wheels and rail mounted to suit all ground conditions.
  • Reduces fuel cost by up to 75%
  • Reducing loading shovel movements which reduces operating cost and improves safety.
  • Increased safety as no need to stockpile with wheel loaders.
  • Reduces face excavator idle time increasing production.

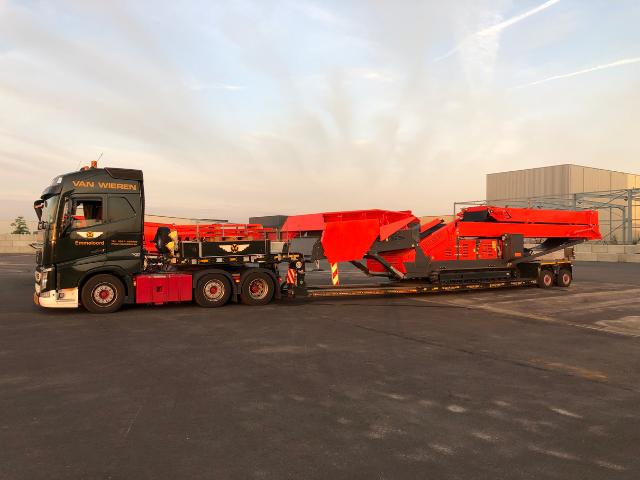

  • Hydraulic folding head section allowing for compact road transportation.
  • Can be packed into 40ft containers for easy, cost effective transport around the globe.
  • Unrivalled mobility and flexibility when in operation.
  • High specification machine designed for ease of maintenance commanding an excellent resale value at project conclusion.
  • Heavy duty design and manufacture.

OPTIONS

  • 360 Degree Slew Option
  • Hydraulic Jacking Legs
  • Belt Upgrades
  • Fall break systems
  • Fold down wing plates
  • Liner Upgrades
  • Apron belt feeder or Apron pan feeder upgrades for high density material or large lump size
  • Dual power
  • Range of discharge conveyors (Cambered boom, fixed length)
  • Dust Suppression Measures – Galvanised / Canvas Dust covers, 360 degree trimmer chutes, Rubber ‘sock’ chutes, water suppression and many more.
  • Sealing of all transfer points including side plates and under-trays
  • 250 micron Specification paint finish

Applications

  • Can feed the complete range of Telestack equipment as well as other auxiliary equipment

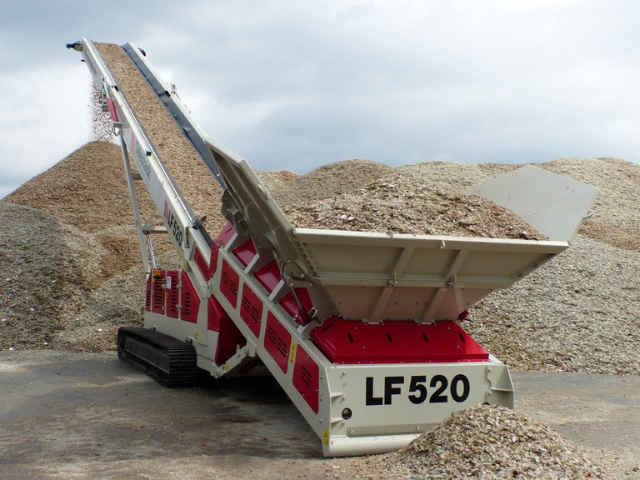

  • Ability to handle complete range of materials such as Coal, Grains, Fertilisers, Ore’s (Iron, copper, gold, bauxite), Aggregates, Woodchips, wood pellets, sulphur, cement clinker and many more....

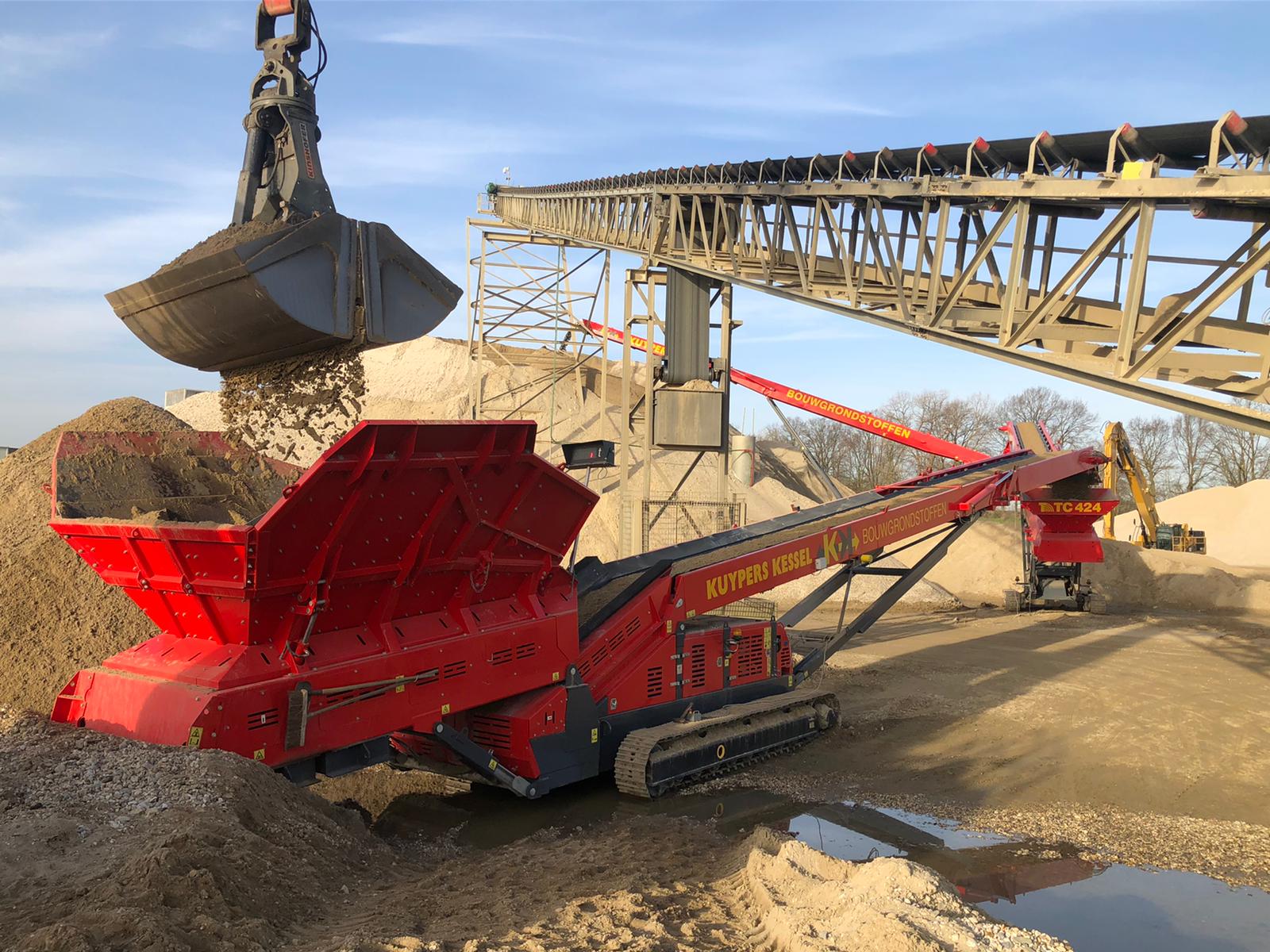

  • Stockpiling / Loading directly from wheel loader, excavator, grab crane etc.
  • Truck and rail wagon loading.

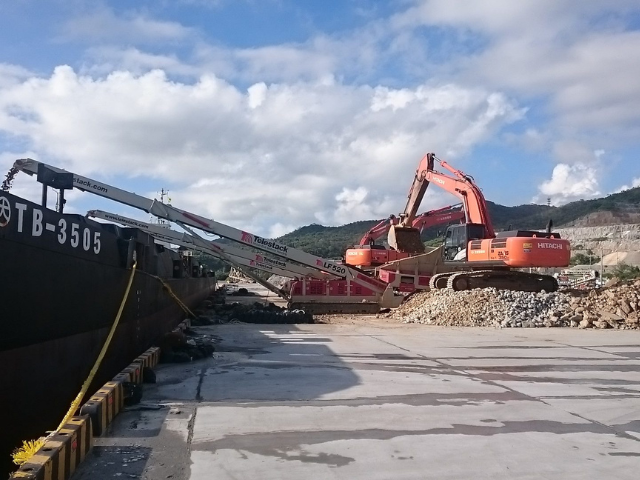

  • Ship and barge loading / unloading.
  • Stockpiling from secondary crushers and screens.

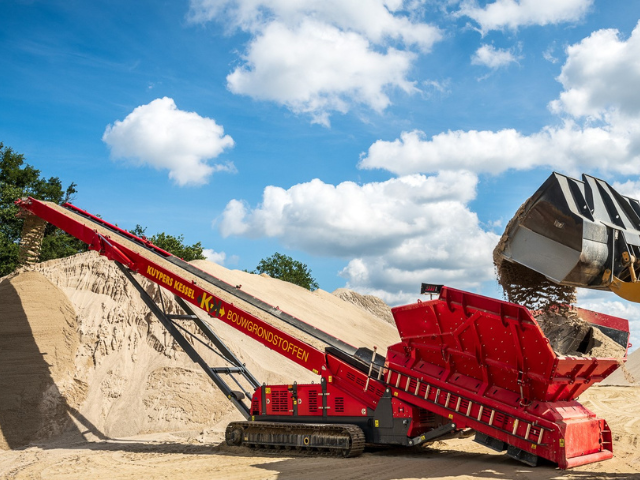

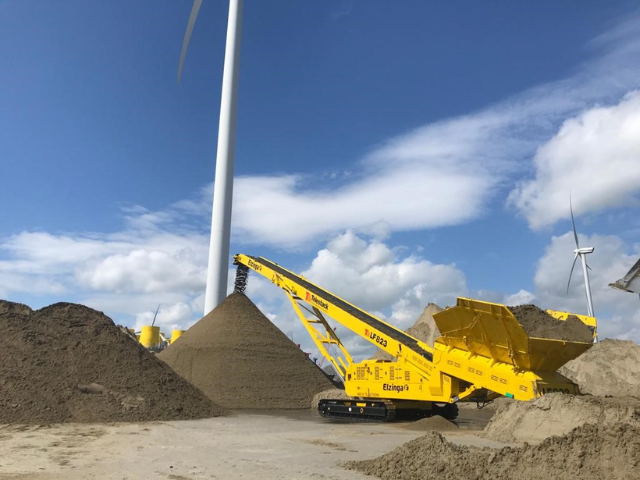

  • Stockpiling crushed stone, sand and gravel, mineral ores.
  • Working as part of a mobile system on short to medium term projects.
  • Fully customized to meet the needs of the application



OPTIONS

  • 360 Degree Slew Option
  • Hydraulic Jacking Legs
  • Belt Upgrades
  • Fall break systems
  • Fold down wing plates
  • Liner Upgrades
  • Apron belt feeder or Apron pan feeder upgrades for high density material or large lump size
  • Dual power
  • Range of discharge conveyors (Cambered boom, fixed length)
  • Dust Suppression Measures – Galvanised / Canvas Dust covers, 360 degree trimmer chutes, Rubber ‘sock’ chutes, water suppression and many more.
  • Sealing of all transfer points including side plates and under-trays
  • 250 micron Specification paint finish
