Radial Telescopic Shiploaders



Radial Telescopic Shiploader

The Radial Telescopic Shiploader offers unrivalled mobility and flexibility when loading a vessel.

Key Features

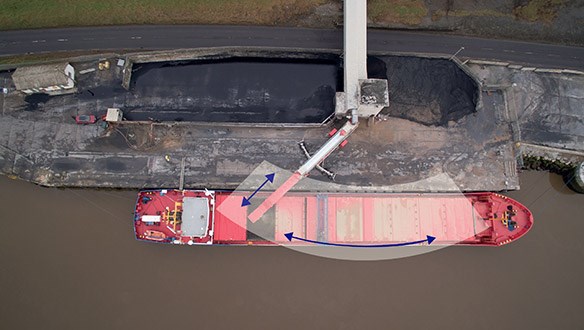

  • Easily trim 3 x hatches from one single feed-in position
  • Parallel driven wheels for quick 'hatch to hatch' times, along with telescopic to 'pass' infrastructure on geared vessels
  • Telescopic features ensures unrivalled trimming capabilities
  • Fully sealed / dust containment/dust extraction options

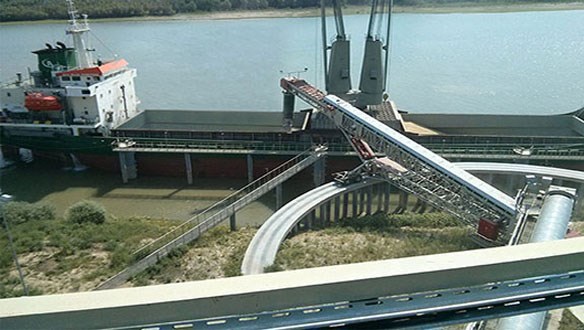

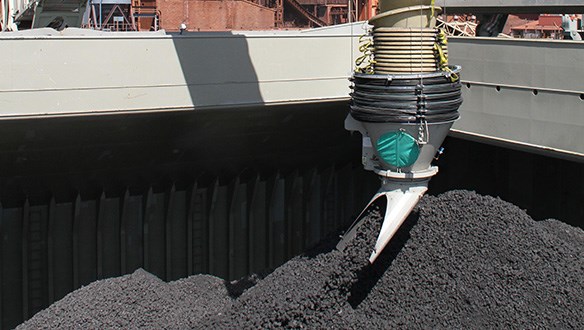

  • Telescopic and Cascade Chutes available
  • Mobility to move 'Off-site' when not in use

Description

The mobile radial telescopic shiploaders ensure unrivaled flexibility when loading a vessel. The radial and telescopic features allow the operator to easily trim the hatch or multiple hatches from one feeding position reducing hatch change times and production downtime. They can load vessels up to Panamax size with ease and offer a complete range of mobility, chutes and dust suppression / extraction options for specific applications and materials

Options

  • Mobility – Driven wheels (In-line, parallel, radial modes), Track mounted (Harsh ground conditions), wheels and rail mounted

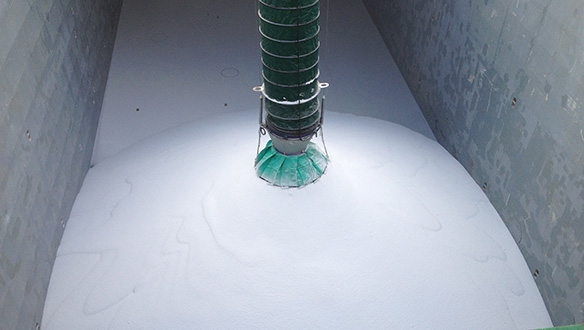

  • Dust Suppression Measures – Galvanised / Canvas Dust covers, Telescopic dust covers, dust extraction, Integrated telescopic chutes (Free-fall – Cascade Design), 360 degree trimmer chutes, Rubber ‘sock’ chutes, water suppression and many more.
  • Sealing of all transfer points including side plates and under-trays
  • Electrical Integration – Communication interlinks, radio remote controls, Fully integrated generators, Ethernet connections and many more.
  • Marine Specification paint finish

Features & Benefits

  • Radial and Telescopic features offer unrivaled trimming capabilities for most sized vessels.
  • Mobility means Flexibility - Complete on-site mobility including driven wheels, tracks, rails and a combination to suit complete range of Jetty/quayside designs.
  • Complete Dust Extraction / Suppression options for handling complete of materials,
  • Fully sealed feed-in / transfer and discharge points to eliminate spillage on site.
  • Loading rates up to 3,000TPH.
  • Fully extended length's up to 58 metres (190ft).
  • Typically lower capital investment than fixed Shiploading systems.
  • Lead Times can range from 10 - 30 weeks.
  • Reduced civil requirements on site.
  • Land / Sea Based Systems are available.
  • Eliminate double handling of material in Port /Inland Terminal

Options

  • Mobility – Driven wheels (In-line, parallel, radial modes), Track mounted (Harsh ground conditions), wheels and rail mounted
  • Dust Suppression Measures – Galvanised / Canvas Dust covers, Telescopic dust covers, dust extraction, Integrated telescopic chutes (Free-fall – Cascade Design), 360 degree trimmer chutes, Rubber ‘sock’ chutes, water suppression and many more.
  • Sealing of all transfer points including side plates and under-trays
  • Electrical Integration – Communication interlinks, radio remote controls, Fully integrated generators, Ethernet connections and many more.
  • Marine Specification paint finish

Applications

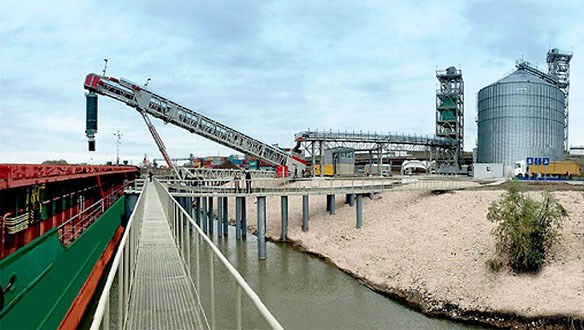

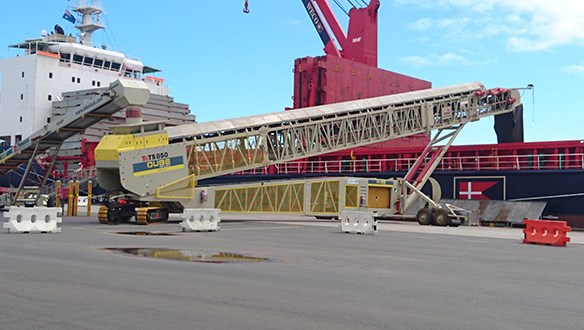

Mobile Shiploaders / Unloaders designed for loading Barges, Coasters, Handysize, Handymax, Panamax Vessels

Complete mobility for use in differing sized ports and loading complete range of vessels

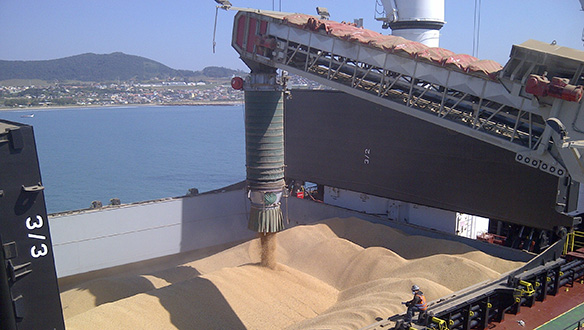

Ability to handle complete range of materials such as Coal, Grains, Fertilisers, Ore’s (Iron, copper, gold, bauxite), Aggregates, Woodchips, wood pellets, sulphur, cement clinker and many more....

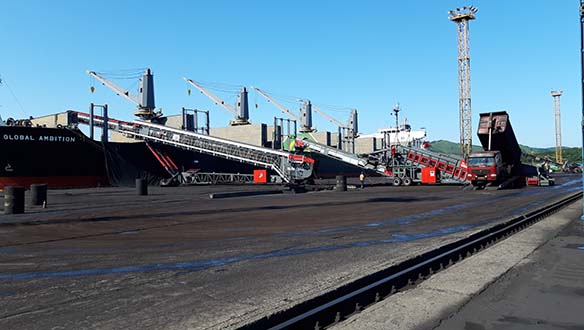

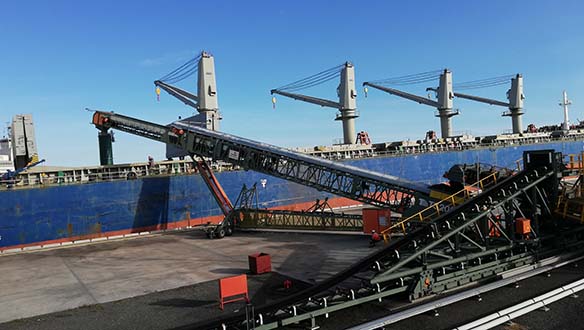

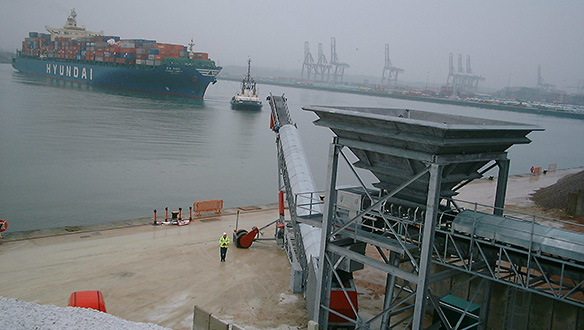

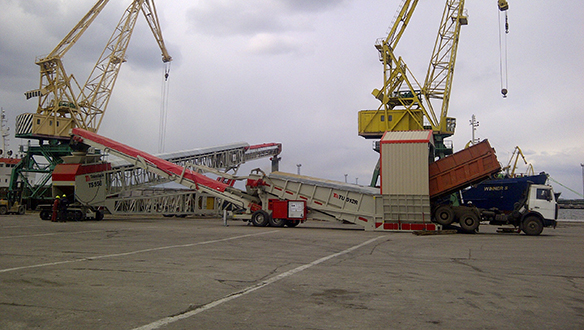

Can be easily fed from fixed conveyor systems, wheel loaders, trucks, overhead conveyors, tripper conveyors and many more systems.

Options

  • Mobility – Driven wheels (In-line, parallel, radial modes), Track mounted (Harsh ground conditions), wheels and rail mounted
  • Dust Suppression Measures – Galvanised / Canvas Dust covers, Telescopic dust covers, dust extraction, Integrated telescopic chutes (Free-fall – Cascade Design), 360 degree trimmer chutes, Rubber ‘sock’ chutes, water suppression and many more.
  • Sealing of all transfer points including side plates and under-trays
  • Electrical Integration – Communication interlinks, radio remote controls, Fully integrated generators, Ethernet connections and many more.
  • Marine Specification paint finish

Case Studies

Case Studies

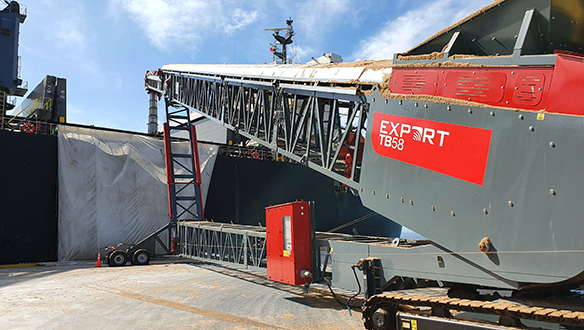

TB 58 Radial Telescopic Shiploader

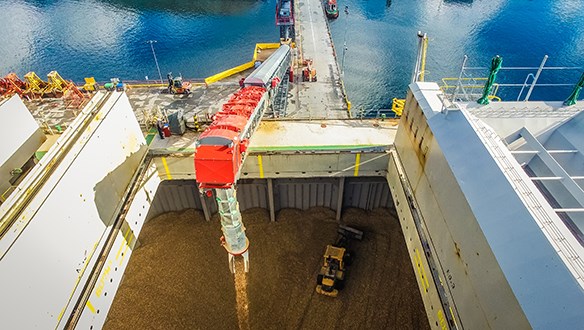

TB58 Custom designed Radial Telescopic Shiploader loading woodchips in Chile

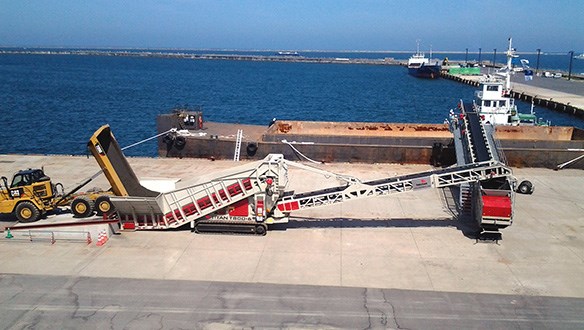

Titan T800-6 and TS 1042 Telescopic Shiploader

Telestack Mobile Bargeloading system in a multi million dollar land reclamation project.

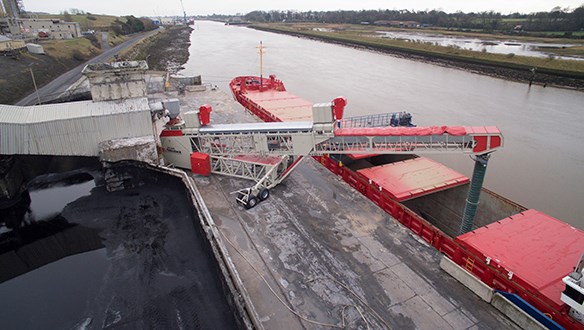

TS331 Radial Telescopic Shiploader-Premier Periclase

An innovative custom design shiploading system to Premier Periclase, in Drogheda, Co Louth in Ireland. The Telestack TS331 Radial Telescopic Shiploader is being used to load coaster vessels directly from a plant conveyor.

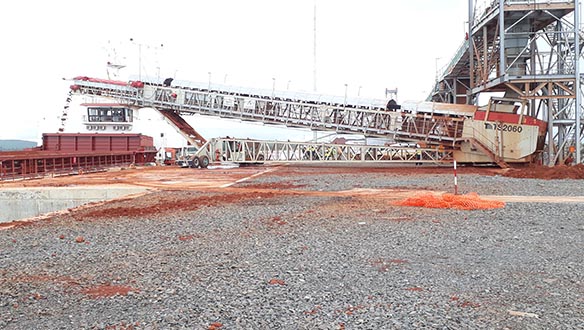

TS2058 & HF2020 Shiploading

An innovative custom design mobile shiploading system in the Port of Buchannan for loading vessels up to Baby Cape Size.

Shiploading at Riga Fertiliser Terminal

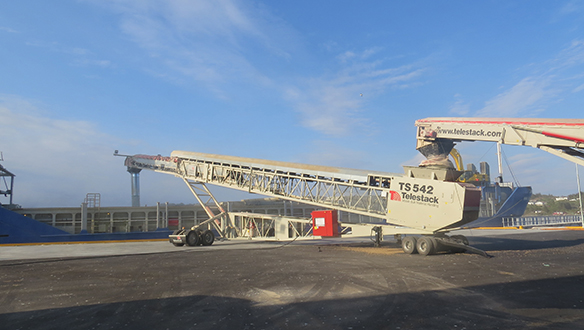

Telestack installed and commissioned a mobile materials transfer and shiploading system for Riga Fertiliser Terminal that comprised of a TS 542 Radial Telescopic Conveyor, a HF 514 Mobile hopper Feeder and a series of Telestack 30 metre mobile Link Conveyors. The transhipment terminal is the most advanced and safest handling facility for fertiliser in Northern Europe.

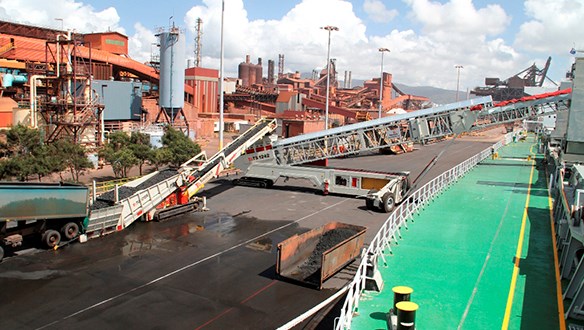

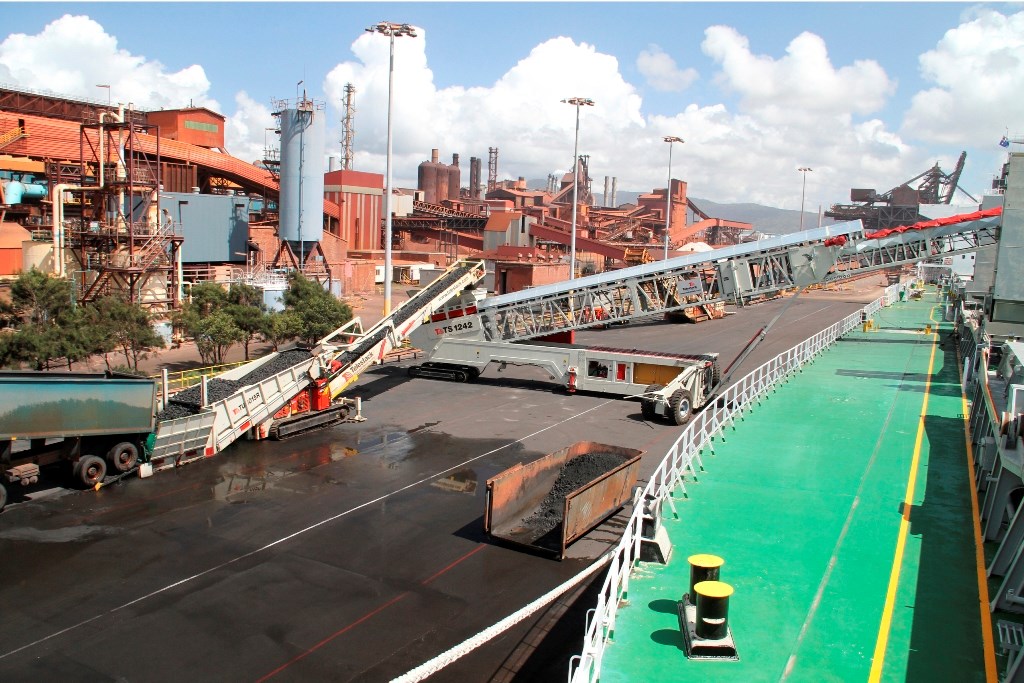

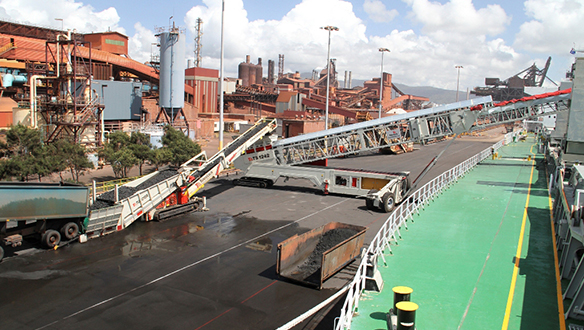

Mobile Shiploading System at Port Kembla

Fully mobile materials transfer and shiploading system for coke loading at Port Kembla

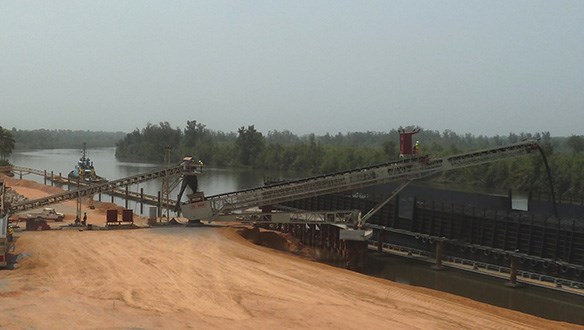

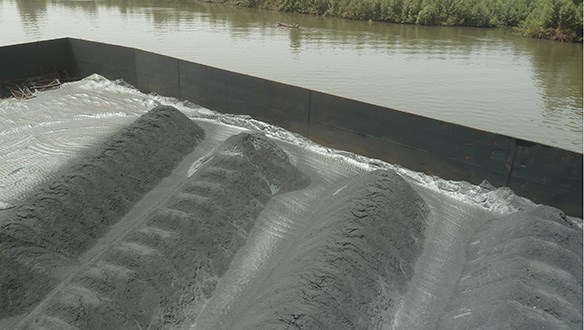

Custom Design Mobile Truck Unloading, Stockpiling, Reclaiming & Barge Loading Facility - Sierra Leon

Customised Truck Unloading, Stockpiling, Reclaiming & Bargeloading Facility

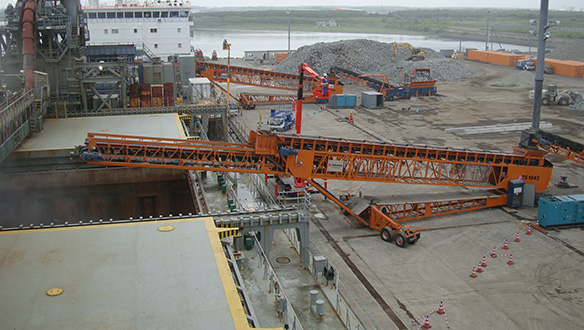

2 x Hopper Feeders & 2 x Radial Telscopics shiploading aggregates

2 x HF1520  Mobile Hopper Feeders & 2 x TS1542 Radial Telescopics shiploading to handymax vessels @ 1500 TPH
